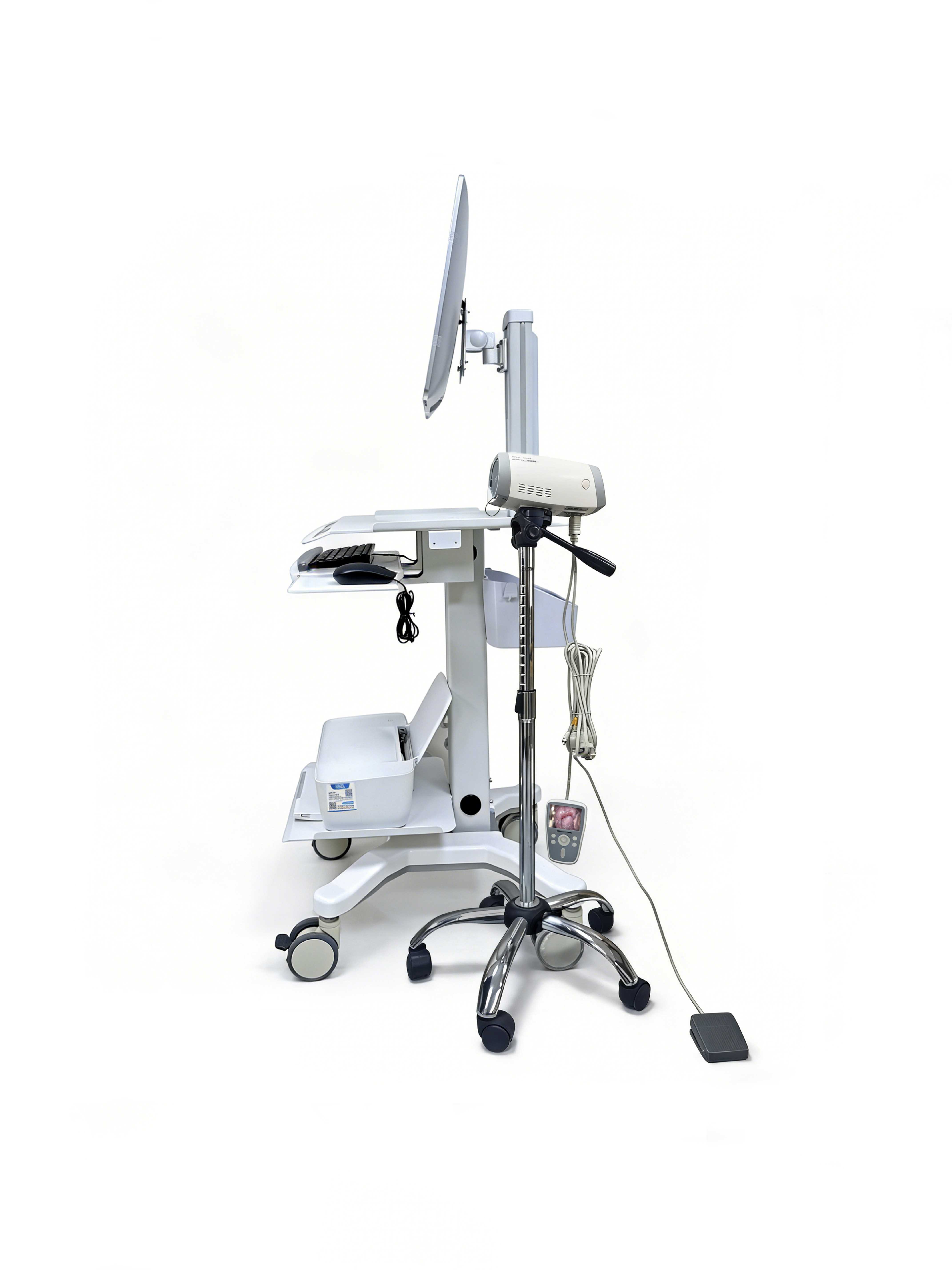

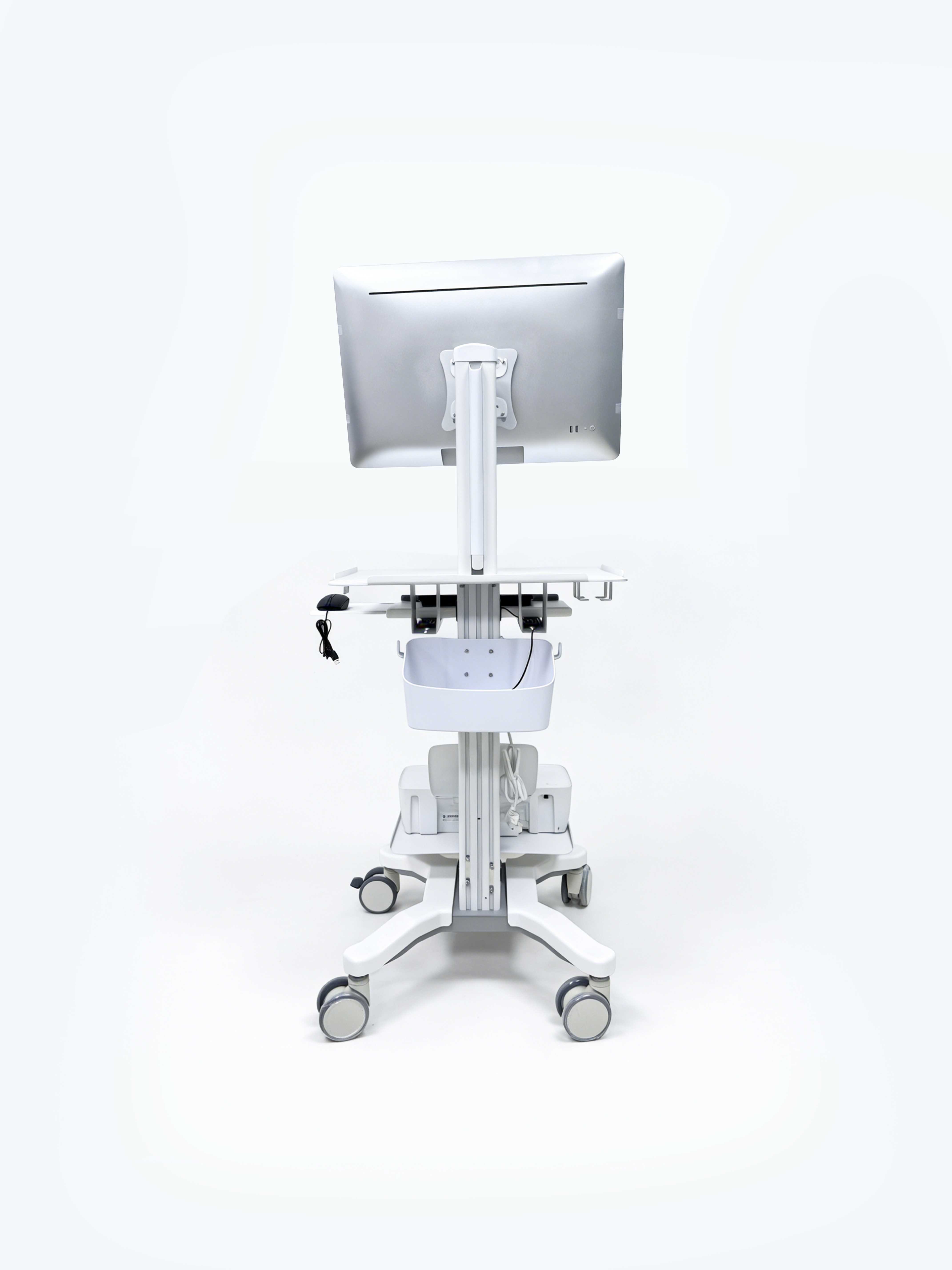

Standard Trolley Digital Electronic Colposcope EK-6000F

Product Detail

Product Overview

The digital electronic colposcope is a fourth-generation high-tech digital imaging system that integrates modern digital electronic technology and computer technology. It displays clear, real-time images of the examined area on a computer monitor, and its high-quality light source and high-magnification, clear images can identify even the smallest lesions.

It is suitable for clinical observation of lesions in the vagina, cervix, and vulva.

Core technologies

HD-SDI Large-Screen Digital HD Video Output

DSP Dynamic Auto-Focus System & HD Ultra-Clear Imaging Technology

AWB Automatic Internal Light Metering Technology with Dynamic Anti-Shake Focus Balance

5-Level Adjustable Dual-Ring Multi-Point LED Technology for Uniform Illumination Without Shadows

Image Light Spot Subtraction Technology for Clear Display of Minute Details

RCI Examination Evaluation & Analysis Function, Capable of Generating Two-Cancer Screening Reports

Localized Biopsy Reporting, Reducing Patient Discomfort and Facilitating Doctors' Work

Functions

(1) It provides a more intuitive and accurate diagnosis of gynecological diseases, applicable to the screening and diagnosis of cervical, vaginal, and vulvar diseases in women, without any trauma or side effects, and can magnify lesion images up to 30 times.

(2) The highly clear images allow doctors to observe extremely small lesions on a computer monitor, improving the accuracy of diagnosing erosion, precancerous lesions, cancer, and other lesions.

(3) The image display, freezing, and acquisition functions of colposcopy can help patients more intuitively understand the condition of cervical lesions.

Characteristics

1. Original HD Color Camera System, supporting 1080P HD display
2. Lens: Equipped with a 1/4-inch color high-resolution CCD from SONY (Japan)
3. Clarity: ≥2.8 million pixels, featuring 30x optical magnification and 1-8x digital focusing, with a maximum magnification of up to 240x
4. Data analysis and calculation of the acquired images
5. The software has a built-in filter function and acetic acid reaction (detection) function, and is connected to the hospital PASS system, with RCI colposcopy evaluation and analysis capabilities
6. Electronic anti-vibration measures and 360° dynamic focus balance
7. Concentrated light with uniform illumination, ensuring no light loss even at high magnification

Configuration

1. EK-6000F Digital Electronic Colposcope
2. PC platform and windows 10 system
3. 24 inches all-in-one high-end computer with trolley
4. HD-SDI Large-Screen Digital HD Video Output
5. EK-6000F Intelligent Analysis System
6. Telescopic support and remote control
7. Integrated workstation
8. Optional printer

Main parameters

1. Lens: Sony high-definition color camera system, supporting 1080P high-definition display;

2. Resolution: ≥5.8 million pixels

3. Focusing Method: DSP dynamic autofocus system, combined with manual focus adjustment;

4. Camera Light Source: Adjustable brightness LED ring light source, illumination system illuminance: ≥2000 Lux

5. Supports ultra-large screen high-definition display; images are noise-free and ghosting-free even at high magnification, enabling the detection of early lesions and lesion details;

6. The software has acetic acid reaction timing and timing acquisition functions, automating acetic acid and iodine reactions during clinical colposcopy;

7. Built-in filter function, including light green, dark green, negative image, gray, etc.

8. Image subtraction angiography technology provides clearer visualization of subcutaneous blood vessel morphology, making it easier to identify extremely minute details, and is particularly effective for observing blood vessels in the cervix and vulva.

9. Features continuous static image acquisition, allowing for dynamic browsing of dozens of images.

10. Offers continuous recording of dynamic images at various sampling frequencies and movie playback functionality.

11. An image library can be added at any time and compared with current medical record images.

12. Generates online reports and transmits image information via the internet or regional networks, enabling resource sharing and remote consultation.

13. Provides RCI colposcopy examination evaluation and analysis functions.

14. Computer host: High-end brand all-in-one machine.

15. Equipped with a high-end luxury integrated ABS injection-molded trolley.

16. Universal wheel lens bracket, smooth movement, easy pushing, horizontal rotation, multi-angle tilt, stepless adjustment, precise damping feel, and a secure, non-slip lock.
