Laptop Digital Electronic Colposcope EK-6000BL
| Product Detail
（一）Product Overview
The EK-6000BL is a digital electronic colposcope with laptop.
The digital electronic colposcope is a fourth-generation high-tech digital imaging system that integrates modern digital electronic technology and computer technology. It displays clear, real-time images of the examined area on a computer monitor, and its high-quality light source and high-magnification, clear images can identify even the smallest lesions.
It is suitable for clinical observation of lesions in the vagina, cervix, and vulva.
（二）Core technologies
HD-SDI Large-Screen Digital HD Video Output
DSP Dynamic Auto-Focus System & HD Ultra-Clear Imaging Technology
AWB Automatic Internal Light Metering Technology with Dynamic Anti-Shake Focus Balance
5-Level Adjustable Dual-Ring Multi-Point LED Technology for Uniform Illumination Without Shadows
Image Light Spot Subtraction Technology for Clear Display of Minute Details
RCI Examination Evaluation & Analysis Function, Capable of Generating Two-Cancer Screening Reports
Localized Biopsy Reporting, Reducing Patient Discomfort and Facilitating Doctors' Work
（三）Functions
(1) It provides a more intuitive and accurate diagnosis of gynecological diseases, applicable to the screening and diagnosis of cervical, vaginal, and vulvar diseases in women, without any trauma or side effects, and can magnify lesion images up to 30 times.
(2) The highly clear images allow doctors to observe extremely small lesions on a computer monitor, improving the accuracy of diagnosing erosion, precancerous lesions, cancer, and other lesions.
(3) The image display, freezing, and acquisition functions of colposcopy can help patients more intuitively understand the condition of cervical lesions.
| Characteristics
1.Original HD Color Camera System, supporting 1080P HD display
2.Lens: Equipped with a 1/4-inch color high-resolution CCD from SONY (Japan)
3.Clarity: ≥2.8 million pixels, featuring 30x optical magnification and 1-8x digital focusing, with a maximum magnification of up to 240x
4.Data analysis and calculation of the acquired images
5.The software has a built-in filter function and acetic acid reaction (detection) function, and is connected to the hospital PASS system, with RCI colposcopy evaluation and analysis capabilities
6.Electronic anti-vibration measures and 360° dynamic focus balance
7.Concentrated light with uniform illumination, ensuring no light loss even at high magnification

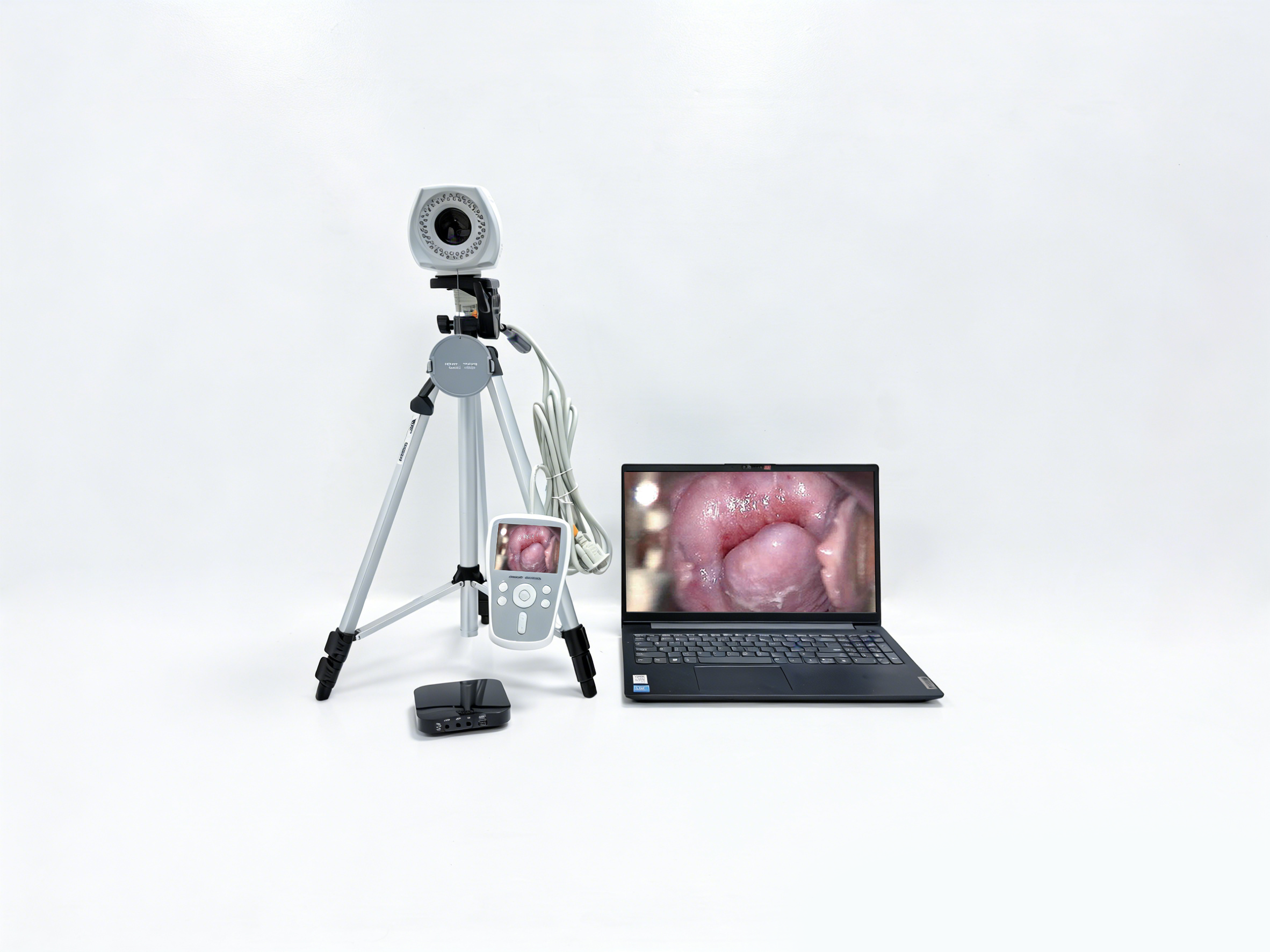

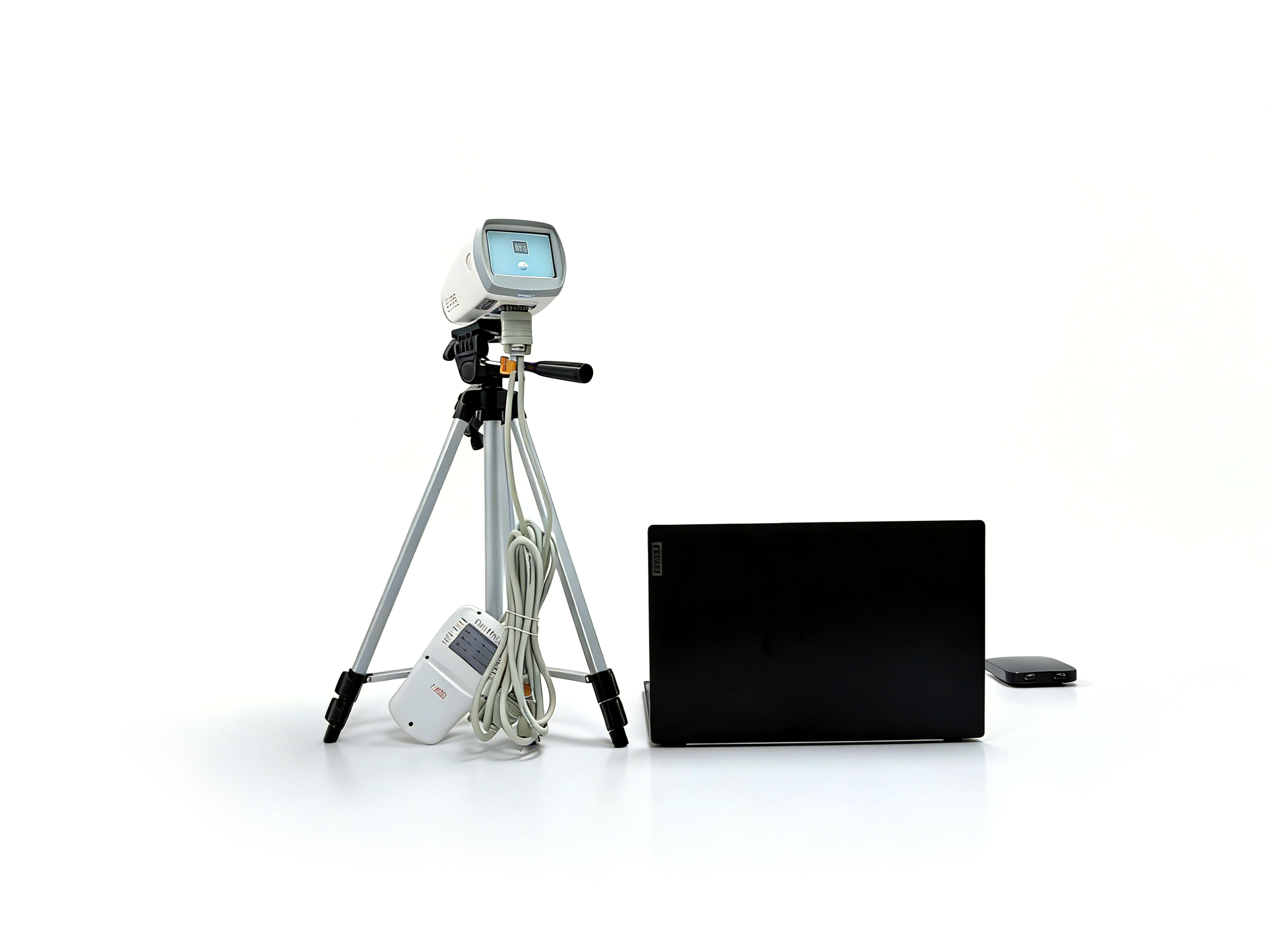

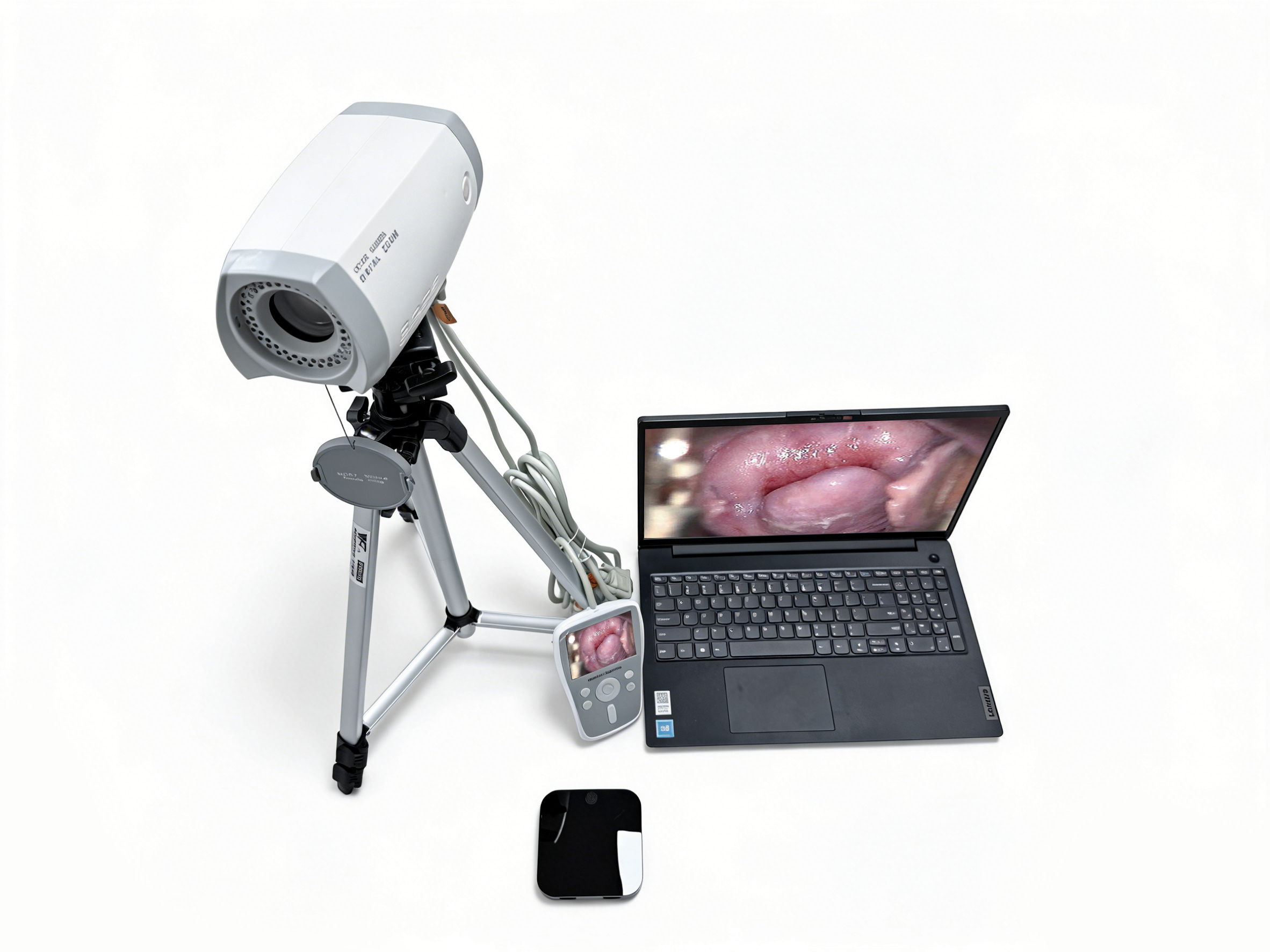

| Configuration
1.EK-6000BL 2.8 million pixels Digital Electronic Colposcope
2.A high-end brand laptop
3.HD-SDI Large-Screen Digital HD Video Output
4.EK-6000B Intelligent Analysis System
5.Portable tripod and remote control
6.Integrated workstation
7.A portable aluminum-plastic case
| Main parameters
1. The device is a laptop-style unit, compact and portable.
2. Camera array: Imported and assembled 2.8-megapixel high-definition color digital camera.
3. Lens resolution: ≥600 TVL, magnification 240x, maximum illumination intensity ≥1000 Lux, spot diameter ≥ 65mm
4. Image card: High-definition video capture card
5. Employs the highest quality 1/4-inch color digital optical zoom lens, 30x optical zoom. Full-screen high-definition image.
6. DSP dynamic autofocus system, 8x digital zoom. Ultra-close-up shooting, combined with manual focus adjustment, clear images can be obtained even at 0.1 meters.
7. Features continuous recording of dynamic images at various sampling frequencies and movie playback functions.
8. Built-in filter functions: light green, dark green, negative, gray, etc.
9. The software features acetic acid reaction timing and timing acquisition functions, automating the acetic acid and iodine reactions during clinical colposcopy.
10. It can generate online reports and transmit image information via the internet or local area network, enabling resource sharing and remote consultation.
11. It provides RCI colposcopy examination evaluation and analysis functions.
12. Features a universal wheel lens holder for smooth movement, easy pushing, horizontal rotation, multi-angle tilt, stepless adjustment, precise damping, and a secure, non-slip locking mechanism.
