Standard Trolley Transcranial Doppler Ultrasound EK-1000B

| Product Detail

（一）Product Overview

The EK-1000B is the basic trolley model of Transcranial Doppler (TCD) ultrasound blood analyzer, It possesses the most mature technology and has a wide range of applications.

Transcranial Doppler (TCD) is a non-invasive diagnostic instrument that uses the Doppler effect of ultrasound to detect cerebrovascular diseases. It integrates high-tech image processing technology and specialized analytical data, and is suitable for detecting intracranial and extracranial blood flow

（二）Advantage

Because TCD can penetrate the skull non-invasively, it is easy to operate and has good repeatability, allowing for continuous and long-term dynamic observation of patients. More importantly, it can provide important hemodynamic data that cannot be detected by imaging techniques such as MRI, DSA, and SPECT.

（三）Diagnostic items

Diagnosis of cerebral artery stenosis and occlusion, and assessment of collateral compensation

Monitoring of cerebral blood flow microemboli

Intraoperative/CAS monitoring during CEA

Monitoring of cerebral artery spasm in subarachnoid hemorrhage (SAH)

（四）Applicable Departments

Neurology, Neurosurgery, Interventional Neurosurgery, Vascular Surgery, Ultrasound, Functional Testing, Geriatrics, Emergency Medicine, etc.

| Characteristics

1.2M mode and PW probe for detecting intracranial blood vessels

2.4M mode and CW probe for detecting carotid artery vessels

3.Spindle wave technology reproduces the original Doppler signal

4.Employing digital technology, ultra-high sensitivity

5.Dynamic storage and playback functions

6.Can generate multi-image case reports                                                                                                                                            7.Multiple languages for selection like English Spanish

8.Network connectivity, database backup/restore, and related functions

9.No age or body type restrictions

10.CE and other Certificate

| Configuration

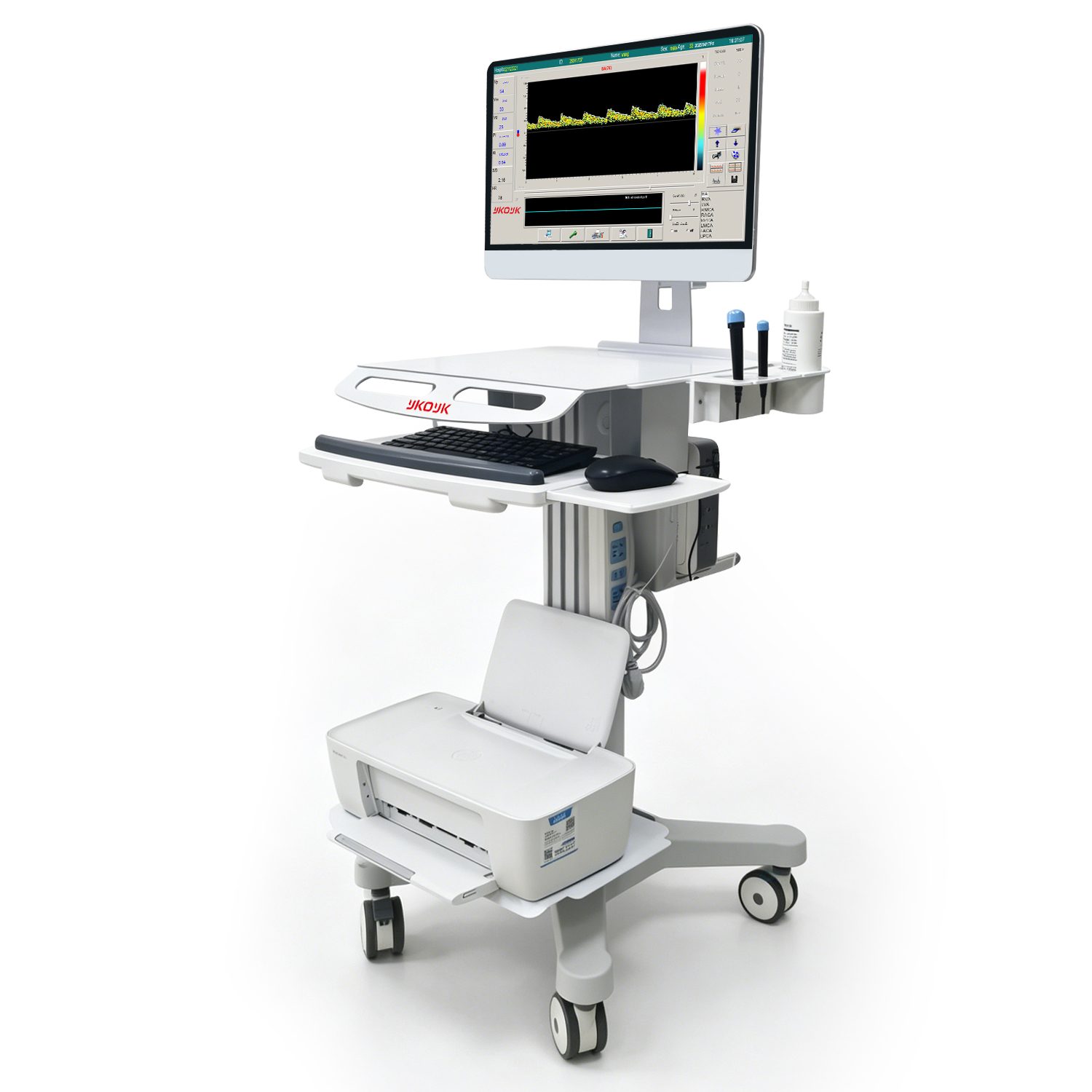

1.EK-1000B 24 inches Transcranial Doppler ultrasound

2.PC platform and windows 10 system

3.One 2M probe and one 4M probe

4.EK-1000B Intelligent Analysis System

5.Probe mounting bracket

6.Multi-function remote control

7.Optional printer with multiple report formats

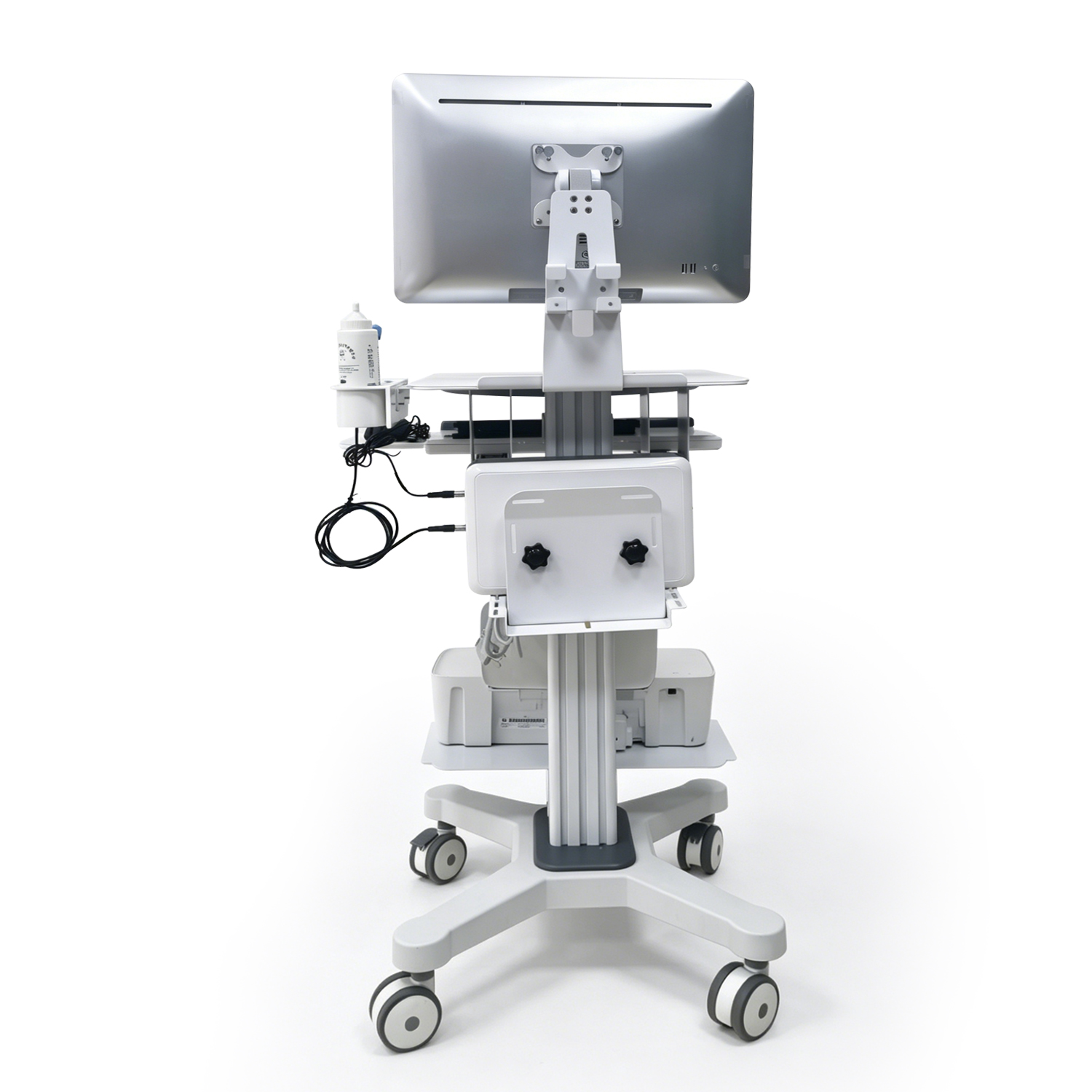

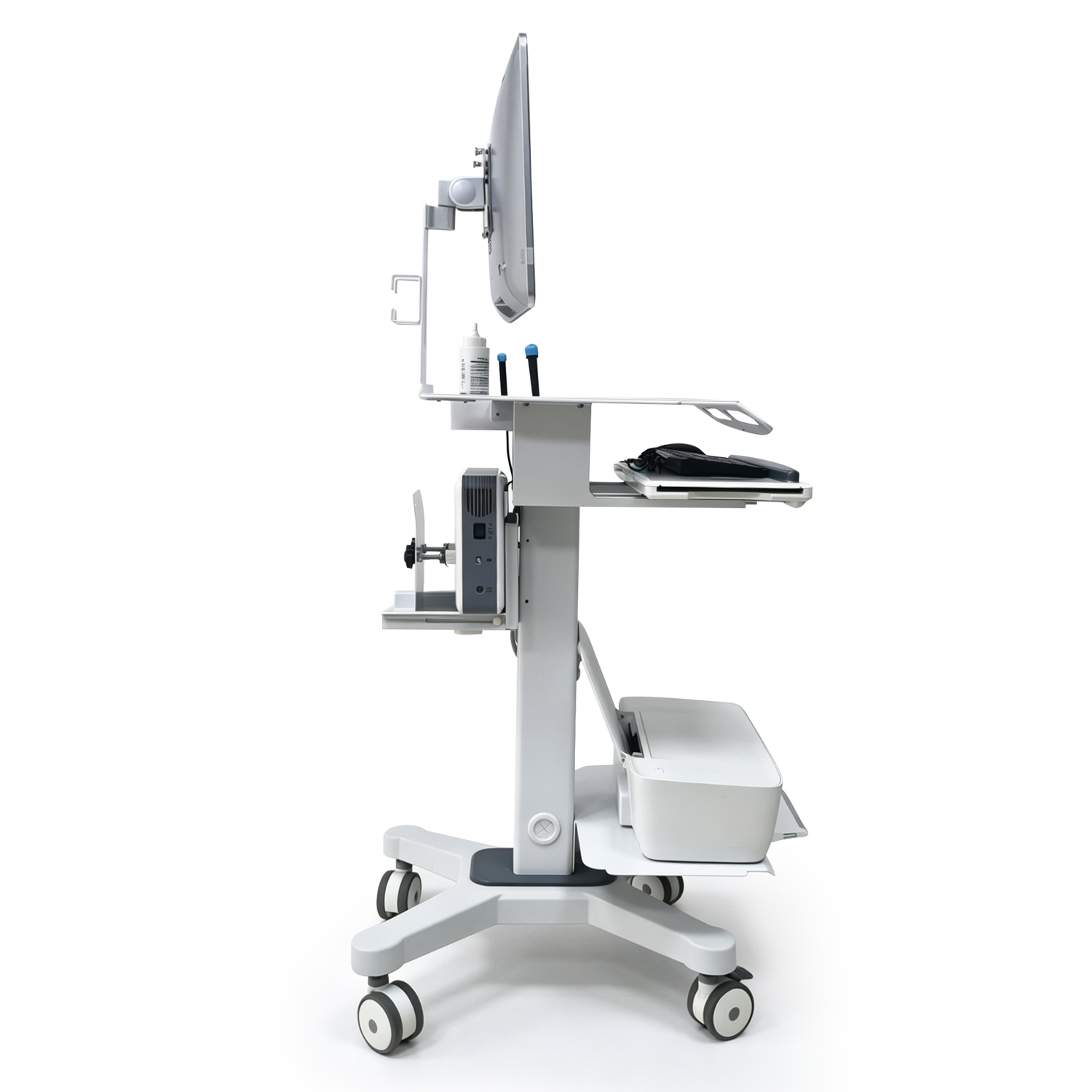

8.Top grade trolley with elegant appearance and easy clean

9.360-degree rotation with high-quality silent wheels

| Main parameters

1. Single-channel, multi-door, four-window design with two probes.

2. Full information playback: The system can fully playback the Doppler spectrum, Doppler flow sound, and parameters during the detection process.

3. Freely operable medical record storage, retrieval, and deletion; up to nine images can be added for printing; utilizing advanced digital technology and unique high sensitivity, it can quickly detect high-quality spectra even at 10% power output.

4. Probe frequency: 2 MHz PW 4 MHz CW

5. Scroll memory: Up to 240 seconds

6. Spectrum tracing speed: Adjustable from 4S to 16S

7. Sampling volume adjustment (PW): 2MHz probe ≤10mm, 4MHz probe ≤5mm

8. Detection depth (PW): 10mm-160mm (CW): 5mm-30mm

9. Maximum detection speed: ≥300cm/s (PW), +612Hz, -1653 (CW)

10. Gain range: 1-56dB; Frequency shift range: PW: 2-12KHz; CW: 2-32KHz

11. Automatic detection display indicators: Vp, Vm, Vd, PI, RI, S/D

12. Equipped with a multi-functional remote control keypad (19 keys) for convenient operation by medical staff.
