Portable Electronic Spine Measurement Instrument EK-8400

Product Detail

Product Overview

The Electronic Spinal Measuring Device is a handheld, non-invasive, pain-free, radiation-free electronic instrument designed to measure various spinal angle metrics.

Incorporating advanced geodetic inclination technology and spatial positioning technology, it accurately measures the angular values of spinal curvature abnormalities, postural irregularities, and mobility impairments in real time. This enables quantitative assessment and evaluation of spinal health from both static and dynamic perspectives.

Diseases treated

Abnormal spinal curvature is a three-dimensional spinal deformity primarily categorized into three types: scoliosis (lateral curvature), kyphosis (hunchback), and lordosis (pelvic anterior tilt). These conditions may result from congenital factors, poor posture, or disease, leading to abnormal posture, chronic pain, and restricted cardiopulmonary function. In severe cases, anterior curvature (pelvic tilt). These conditions may result from congenital factors, poor posture, or underlying diseases. They can lead to abnormal posture, chronic pain, and restricted cardiopulmonary function. In severe cases, they may cause nerve damage, organ compression, and even impair mobility and quality of life. Timely detection and ongoing monitoring are essential.

Measuring Host / Core Technology

Measure 6 major areas in 14 different postures

Touchscreen measurement with intelligent voice prompts

Spatial dynamic vector positioning technology

Pain-free, non-invasive, radiation-free

handheld and mobile

Accurate and objective measurements without location restrictions

Measuring Items

Kyphosis Measurement - Hunchback

Lateral Curvature Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine

Flexion and Extension Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine

Horizontal Rotation Angle Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine

Trunk Tilt Angle Measurement

Body Balance Measurement - Head, Shoulders, Waist

Application Fields

Schools, pediatric departments, orthopedic departments, rehabilitation departments, sports medicine institutes, human anatomy laboratories, physiology laboratories, health laboratories, national fitness monitoring centers, disease control centers, community health centers, sanatoriums, and health examination centers.

Characteristics

1. Quick examination and simple operation
2. Portable Model and easy to move
3. Multiple languages for selection like English Spanish
4. Network connectivity, Bluetooth transmission, database backup/restore, and related functions
5. No age or body type restrictions
6. ID card recognition, barcode scanning, and thermal printing capabilities are optional
7. Includes clinical databases from different countries around the world
8. CE ISO and other Certificate

Configuration

1. Famous Brand Embedded Industrial Control Computer
2. PC platform and windows 10 system
3. Intelligent Analysis System
4. Bluetooth receiver
5. Three different models of measuring instrument host for selection(A B C)
6. Optional thermal printer

Main parameters

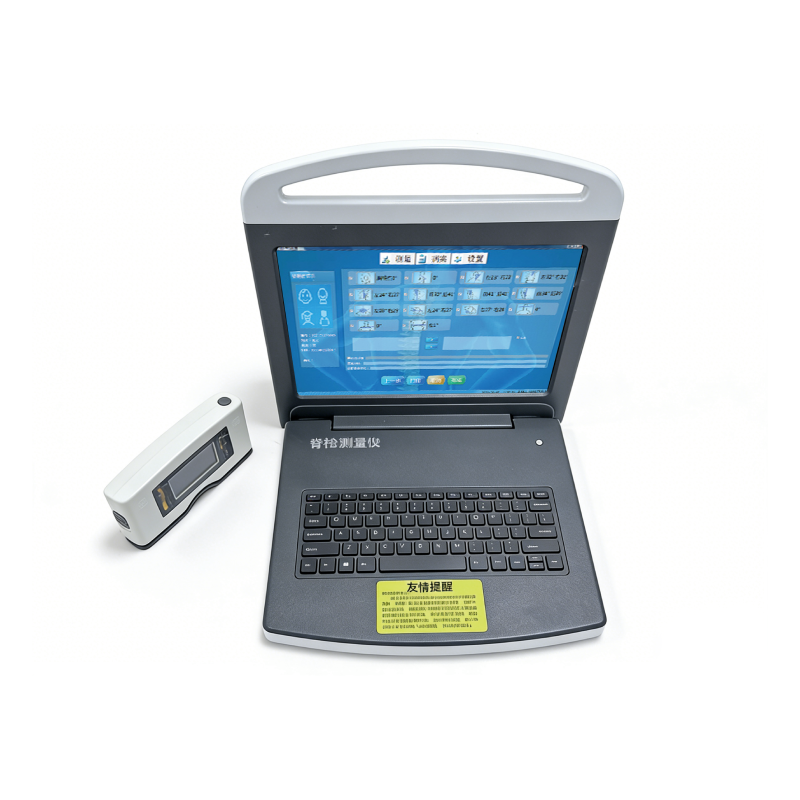

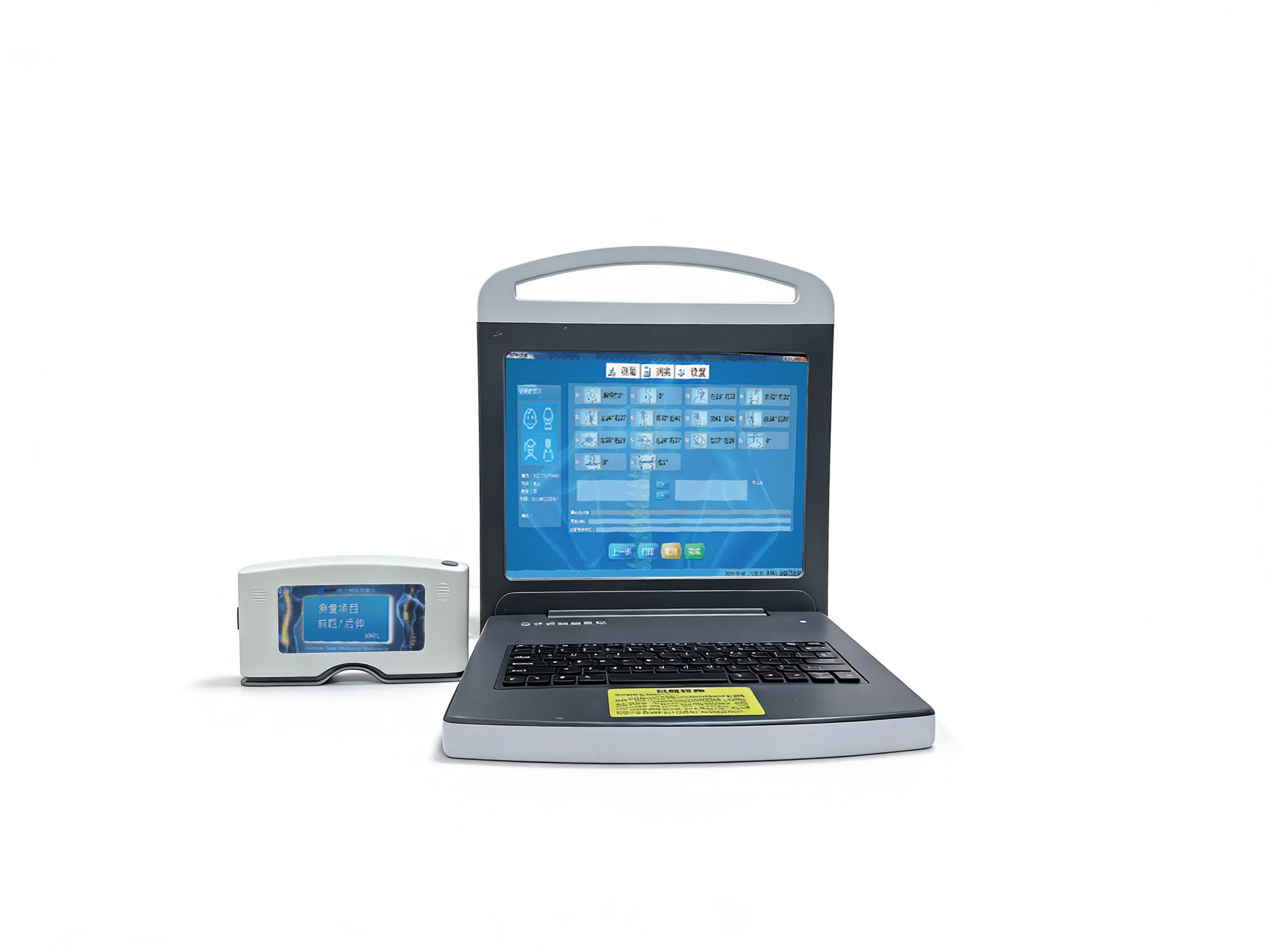

1. The device is a portable, all-in-one flip-top unit, taking up little space and easy to carry;

2. It can measure 14 items: trunk tilt angle, kyphosis (hunchback), cervical lateral curvature, thoracic lateral curvature, lumbar lateral curvature, cervical flexion and extension, thoracic flexion and extension, lumbar flexion and extension, cervical horizontal rotation, thoracic horizontal rotation, lumbar horizontal rotation, head balance, shoulder balance, and lumbar balance;

3. Single-item measurement time < 15 seconds;

4. Measurement angle range: 0-179º;

5. Measurement accuracy: ±1.5º;

6. Transmits via Bluetooth; the computer and main unit must be at least 3 meters apart in unobstructed conditions;

7. The software automatically analyzes the data. In addition to displaying the fourteen measurement items, the report for trunk tilt angle measurement should clearly show indicators such as normal, lateral curvature I, lateral curvature II, and lateral curvature III.

8. The device has an alarm function: an alarm will sound if the measurement time exceeds 10 seconds.

9. The software has functions for creating, searching, and deleting medical records, as well as batch importing and exporting medical records from Excel spreadsheets.

10. The software has a function for adding templates for departments, diagnosing doctors, and diagnostic information.

11. The software has functions for previewing and printing single reports and overall reports, as well as unlimited batch report printing. When printing in batches, cases can be filtered according to the measurement time period within the case management system. There is no limit to the number of cases that can be printed in batches. The software also includes functions for modifying and editing report conclusions.
