Laptop Electronic Spine Measurement Instrument EK-8300
| Product Detail
（一）Product Overview

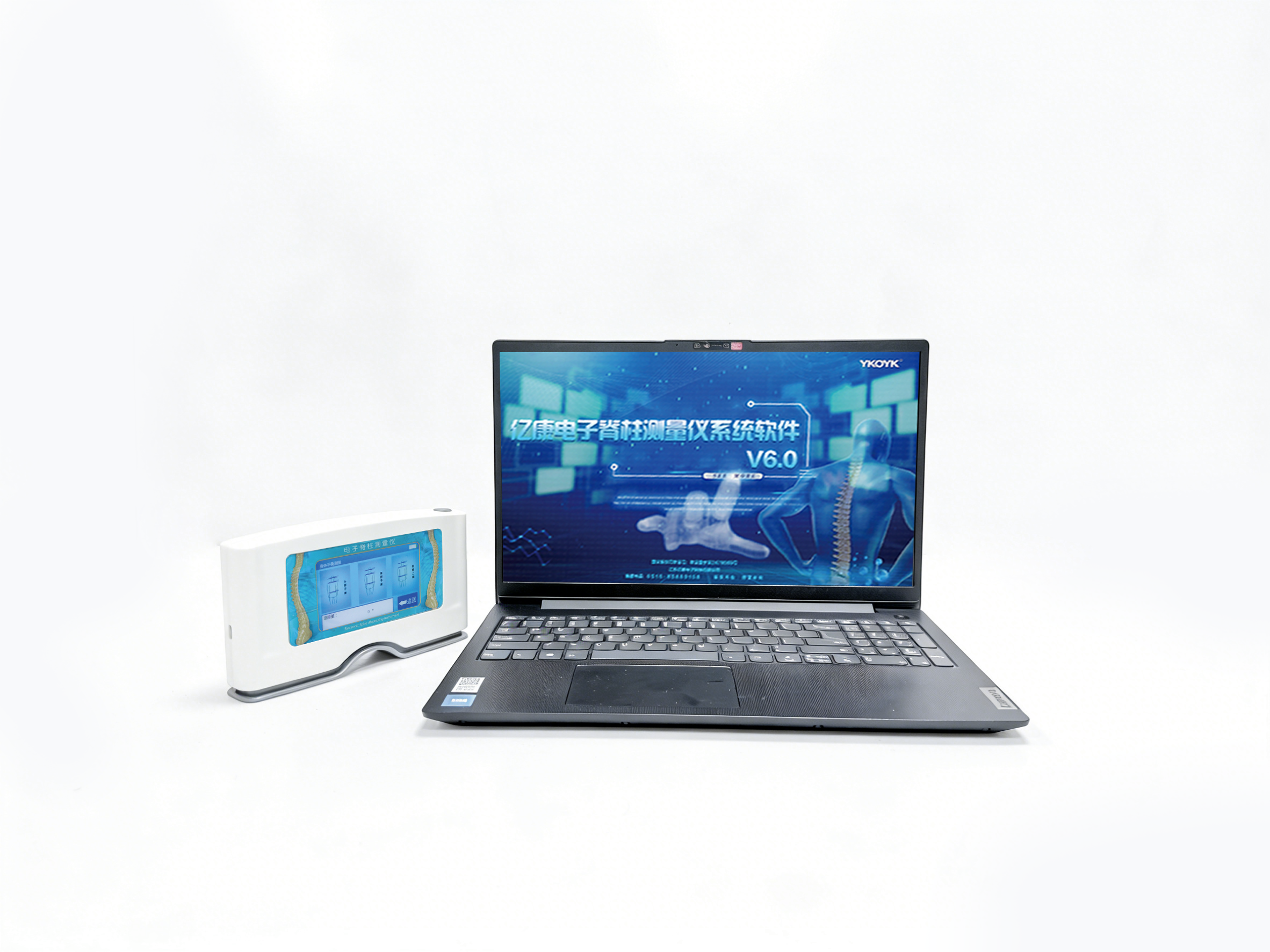

The EK-8300 is a complete electronic spine measuring instrument with a laptop.（一句话介绍产品，可放在产品图片左右侧）
The Electronic Spinal Measuring Device is a handheld, non-invasive, pain-free, radiation-free electronic instrument designed to measure various spinal angle metrics.
Incorporating advanced geodetic inclination technology and spatial positioning technology, it accurately measures the angular values of spinal curvature abnormalities, postural irregularities, and mobility impairments in real time. This enables quantitative assessment and evaluation of spinal health from both static and dynamic perspectives.
（二）Diseases treated
Abnormal spinal curvature is a three-dimensional spinal deformity primarily categorized into three types: scoliosis (lateral curvature), kyphosis (hunchback), and lordosis (pelvic anterior tilt). These conditions may result from congenital factors, poor posture, or disease, leading to abnormal posture, chronic pain, and restricted cardiopulmonary function. In severe cases, anterior curvature (pelvic tilt). These conditions may result from congenital factors, poor posture, or underlying diseases. They can lead to abnormal posture, chronic pain, and restricted cardiopulmonary function. In severe cases, they may cause nerve damage, organ compression, and even impair mobility and quality of life. Timely detection and ongoing monitoring are essential.
（三）Measuring Host / Core Technology
Measure 6 major areas in 14 different postures
Touchscreen measurement with intelligent voice prompts
Spatial dynamic vector positioning technology
Pain-free, non-invasive, radiation-free
handheld and mobile
Accurate and objective measurements without location restrictions
（四）Measuring Items
Kyphosis Measurement - Hunchback
Lateral Curvature Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine
Flexion and Extension Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine
Horizontal Rotation Angle Measurement - Cervical Spine, Thoracic Spine, Lumbar Spine
Trunk Tilt Angle Measurement
Body Balance Measurement - Head, Shoulders, Waist
（五）Application Fields
Schools, pediatric departments, orthopedic departments, rehabilitation departments, sports medicine institutes, human anatomy laboratories, physiology laboratories, health laboratories, national fitness monitoring centers, disease control centers, community health centers, sanatoriums, and health examination centers.
| Characteristics
1.Quick examination and simple operation
2.Notebook Model and easy to move
3.Multiple languages for selection like English Spanish
4.Network connectivity, Bluetooth transmission, database backup/restore, and related functions
5.No age or body type restrictions
6.ID card recognition, barcode scanning, and thermal printing capabilities are optional
7.Includes clinical databases from different countries around the world
8.CE ISO and other Certificate
| Configuration
1.A high-end brand laptop
2.PC platform and windows 10 system
3.Intelligent Analysis Software
4.Bluetooth receiver
5.Three different models of measuring instrument host for selection(A B C)
6.A portable aluminum-plastic case
7.Optional thermal printer
| Main parameters

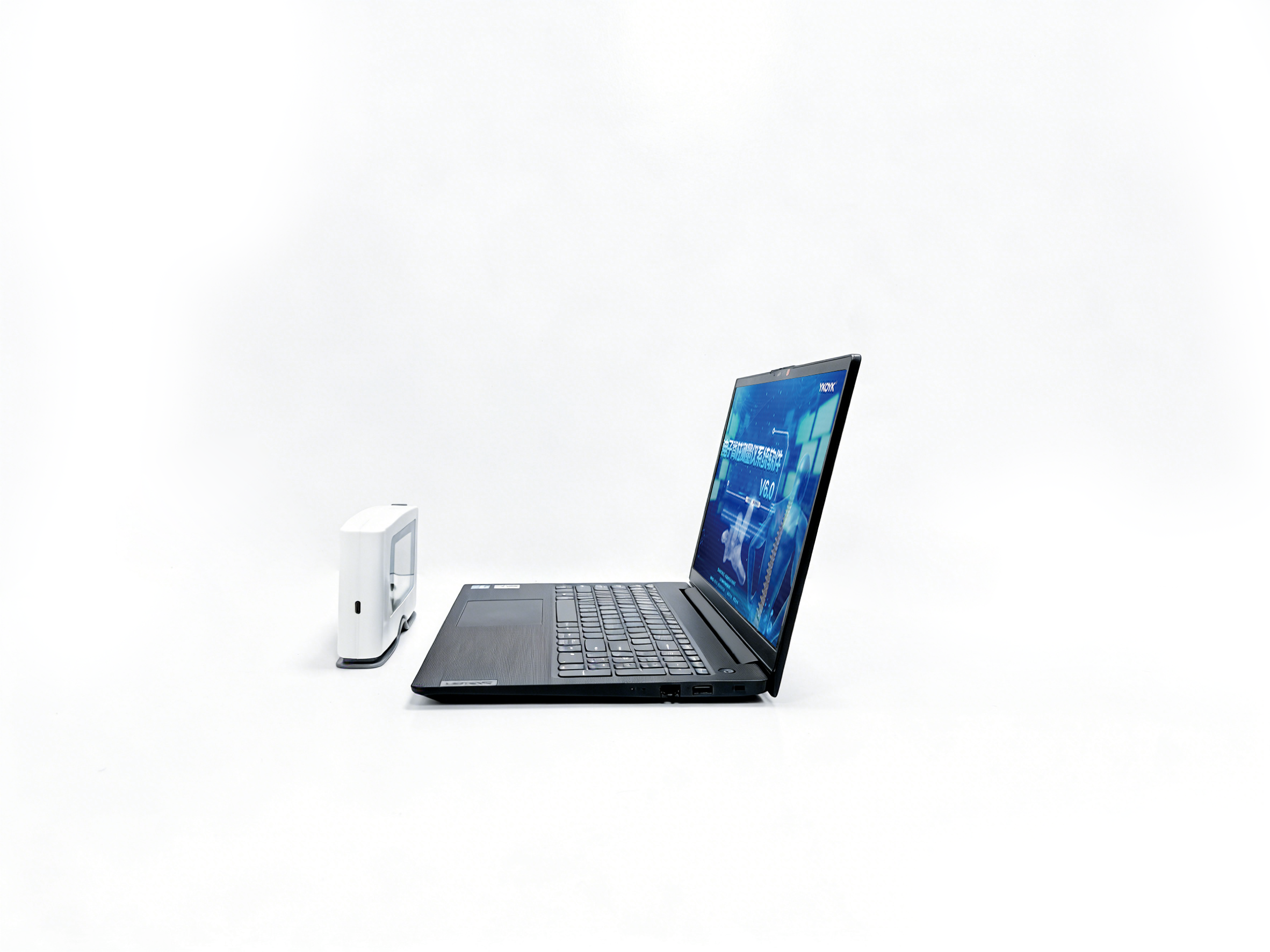

1. The device is a laptop-style unit, compact and portable.
2. It can measure 14 items: trunk tilt angle, kyphosis (hunchback), cervical lateral curvature, thoracic lateral curvature, lumbar lateral curvature, cervical flexion and extension, thoracic flexion and extension, lumbar flexion and extension, cervical horizontal rotation, thoracic horizontal rotation, lumbar horizontal rotation, head balance, shoulder balance, and lumbar balance.
3. Single-item measurement time < 15 seconds.
4. Measurement angle range: 0-179º.
5. Measurement accuracy: ±1.5º.
6. Bluetooth transmission; the receiving distance between the computer and the main unit is at least 3 meters in unobstructed conditions.
7. Color touchscreen measurement main unit: measurement items can be selected on the touchscreen; Type-C charging interface for easy user pairing; intelligent voice prompts.
8. The software automatically analyzes the data. In addition to displaying the fourteen standard measurement items, the report clearly shows the trunk tilt angle measurement, indicating whether it is normal, lateral curvature I, lateral curvature II, or lateral curvature III.
9. The device has an alarm function: an alarm will sound if the measurement time exceeds 10 seconds.
10. The software has functions for creating, searching, and deleting medical records, as well as batch importing and exporting medical records from Excel spreadsheets.
11. The software has a function for adding templates for departments, diagnosing doctors, and diagnostic information.
12. The software has preview and print functions for single and overall reports, as well as unlimited batch report printing. For batch printing, cases can be filtered according to the measurement time period within the case management system. There is no limit to the number of cases that can be printed in batches. The software also includes functions for modifying and editing report conclusions.
13. Supports network connectivity and database backup and restore functions.
