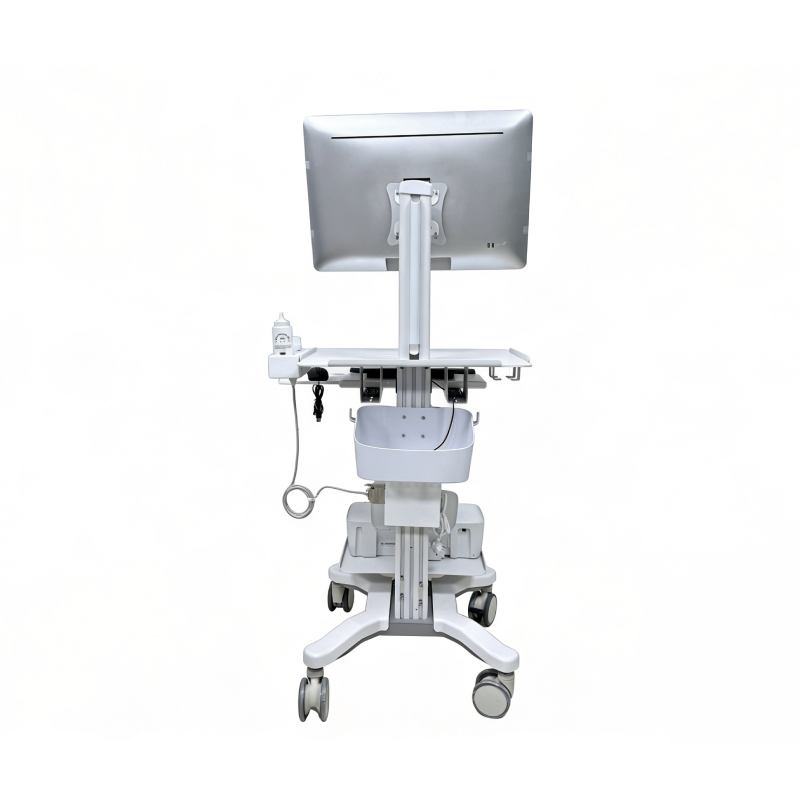

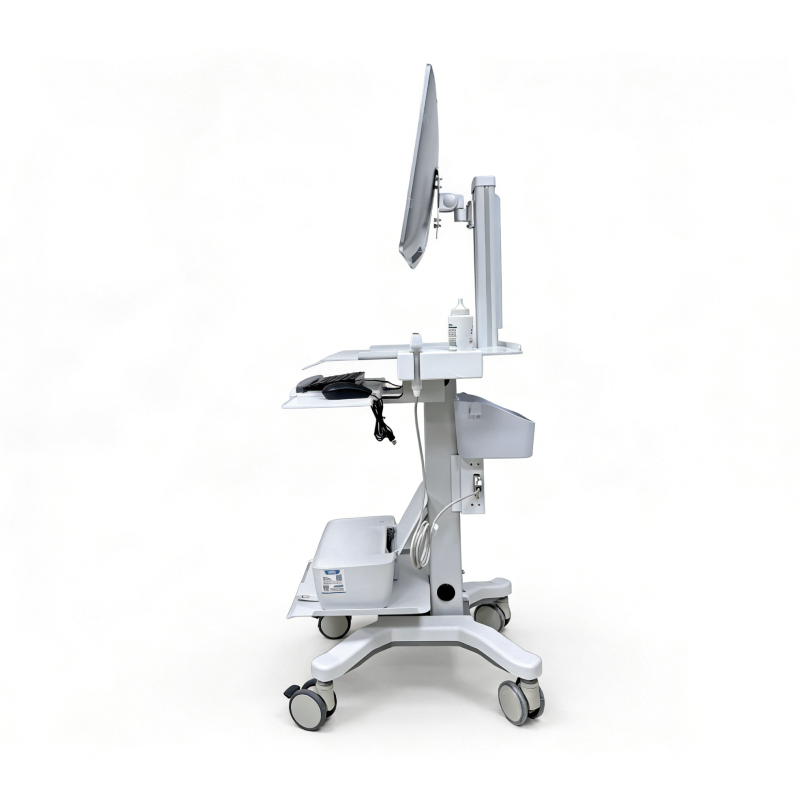

High-end Trolley Ultrasoound Bone Densitometer EK-8800E
| Product Detail
（一）Product Overview
The EK-8800E is a high-end trolley-type ultrasonic bone densitometer that upgrades the technology of the basic model.
The EK-8800E is an instrument that measures bone density and strength in the radius and tibia to assess bone quality and help prevent osteoporosis, balances professional functionality with user-friendly operation.
The device features a multi-language interface, reducing operational learning curves and enabling healthcare professionals to master it quickly.
It comes standard with both adult and pediatric software packages, allowing flexible selection based on the patient population to cover diverse age group requirements.
Additionally, the device incorporates multiple optional male and female reference databases, with test results fully compliant with the World Health Organization (WHO) diagnostic criteria for osteoporosis, providing precise and reliable data support for clinical diagnosis.
（二）Applicable Population:
1.Pregnant Women's：Women experience significant changes in bone density during pregnancy and lactation. Bone density testing is necessary during these periods, as both excessive and insufficient calcium intake can hinder normal bone development.
2.Bone Density of Middle-Aged and Elderly Individuals：Older adults are prone to calcium loss due to their unique physical constitution, which can lead to osteoporosis. Regular bone density tests are necessary, and calcium supplementation should be administered promptly as needed.
3.Bone Density in Children：Childhood is a critical period for rapid skeletal development. Diseases and unhealthy conditions can lead to abnormal bone development and bone mineral deficiency. Regular bone density screening can detect abnormal bone mineral content in children at an early stage.
Bone Density in Infants and Toddlers：Infants are in a period of rapid growth, during which the absorption of calcium in their bones is critically important. This process also lays a solid foundation for their lifelong bone health
（三）Application Range:
maternal and child health care center,
geriatric hospital, sanatorium,
rehabilitation hospital,
health center, community hospital,
pharmaceutical factory,
pharmacy,
health care product promotion, etc.
The Department of the General Hospital, Such as:
Pediatric Department,
Gynecology and Obstetrics Department,
Orthopedics Department,
Geriatrics Department,
Physical Examination Department,
Rehabilitation department
Physical Examination Department
Endocrinology Department
| Characteristics
1.It comes standard with both adult and children's software
2.High precision and speed for radius or tibia measurements
3.The measurement population is flexible and covers different age groups
4.Built-in multiple selectable male and female reference databases
5.Meets the World Health Organization (WHO) diagnostic criteria for osteoporosis
6.The user interface allows for switching between various languages
7.Optional features include ID card recognition, barcode scanning, and thermal printing
8.Portable model, easy to move
9.Automated analysis system, independent test report
CE and other certification
| Configuration
1.High-end brand all-in-one computer with 24 inches ultra-bright LCD screen
2.EK-8800E Intelligent Analysis System
3.Standard configuration probe, probe frequency 1MHz±15%
4.Probe and coupling agent holder
5.Quality inspection module, positioning scale
6.Markers, leather pillows and other accessories
7.Printer is Optional
8.Top grade trolley with elegant appearance and easy clean
| Main parameters
1. Fully automatic, simplified, integrated ultrasound detection of bone mineral density (BMD) values in the radius or tibia.
2. Multiple site selection options (radius + tibia);
3. Handheld, wide-band focusing, imported assembled probe with a transmission frequency and nominal center frequency of 1MHz ± 15%;
4. Measurement error ≤ ±1.5%, repeatability CV ≤ 0.4%;
5. Measurable age range: 0-100 years. When measuring children, the software automatically plays animations to distract them and facilitate measurement.
6. Measurement cycle adjustable from 1 to 5, measurement time adjustable, fastest measurement time ≤ 5 seconds;
7. During measurement, the software displays whether the chip T0, R0, T1, and R1 are active: green indicates active, red indicates inactive. Horizontal, directional, and axial indicators are provided during measurement.
8. The software automatically analyzes and displays: normal, reduced bone mass, osteoporosis, etc.;
9. The software has a data comparison function for the same subject at different ages, facilitating doctors' observation of bone changes in the subject.
10. Color output reports; reports can include hospital name, logo, and address; patient data storage ≥ 5 million.
11. Software features Excel data export and import functions, and network connectivity.
12. Software includes reference data for Chinese, Asian, European, American, and Caucasian populations.
13. Integrated trolley with international standard slide rails; equipped with an all-in-one computer that can be raised and lowered; ABS+PC+silver ion sterilization desktop; practical, wear-resistant, and not prone to aging.
